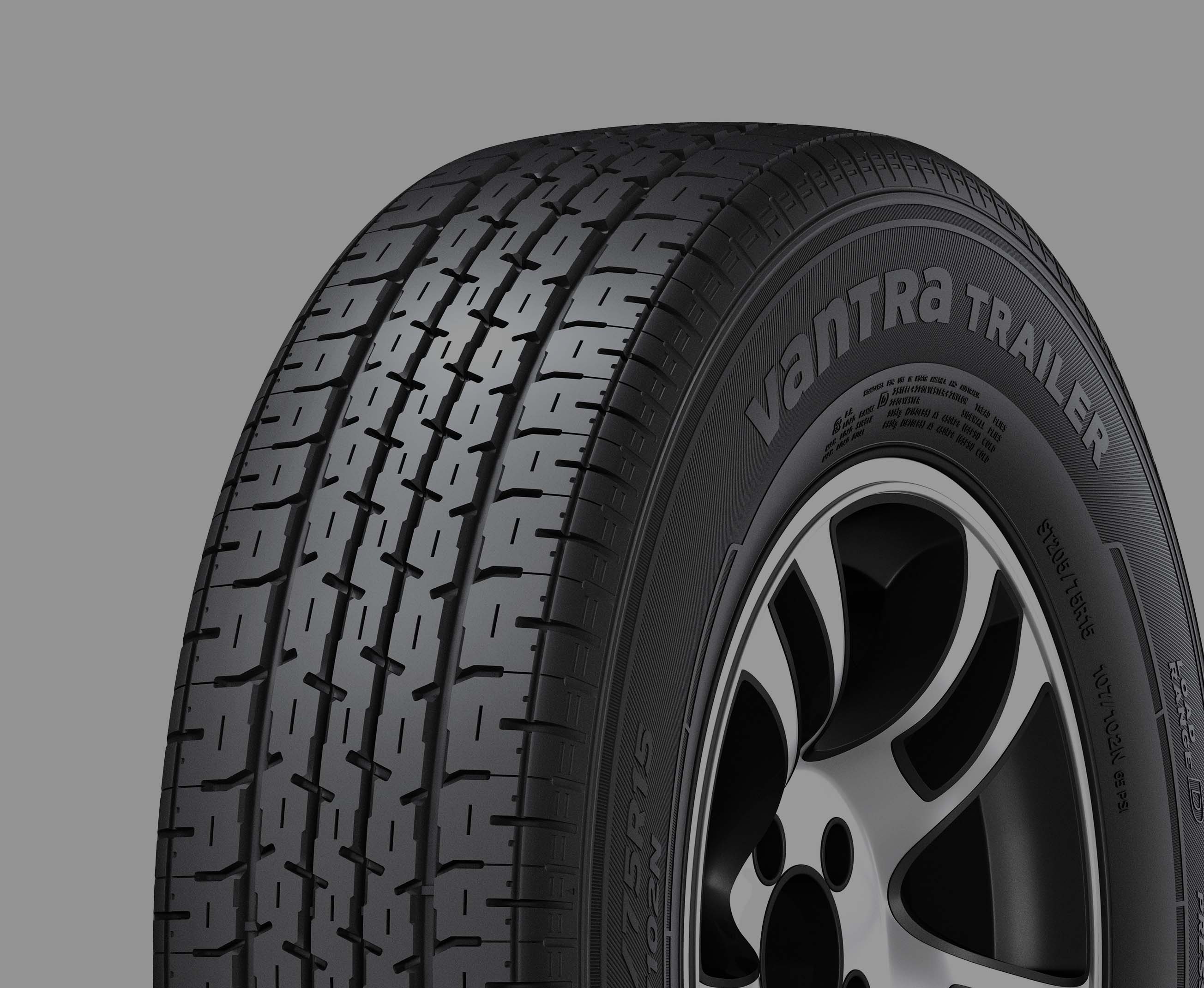

Vantra Trailer

The first special trailer tire of exceptional durability and stability

Application
  • Regional Haul
Special Trailer Recommended Available
Where to Buy
Where to Buy 0
0Recently viewed products

Durable & Long-Lasting even under Heavy Loads

Hankook Tire & Technology-Tires-Vantra-Vantra Trailer-ST01-Durable & Long-Lasting even under Heavy Loads

Durability

Reinforced structure and optimized pattern design maximize Vantra Trailer durability.

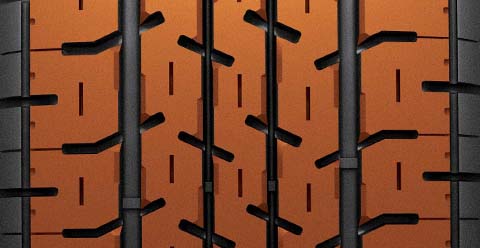

High stiffness pattern block

Pattern block ratio design optimized for high load condition.

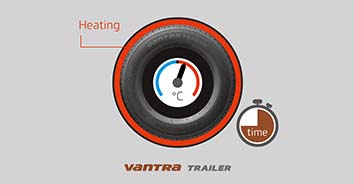

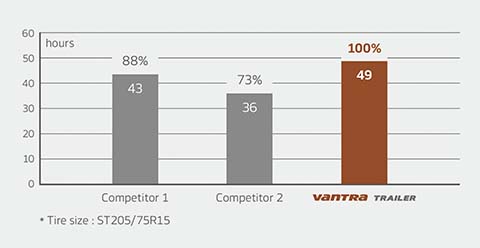

Performance test result

Optimized curing temperature helps improve aging durability performance.

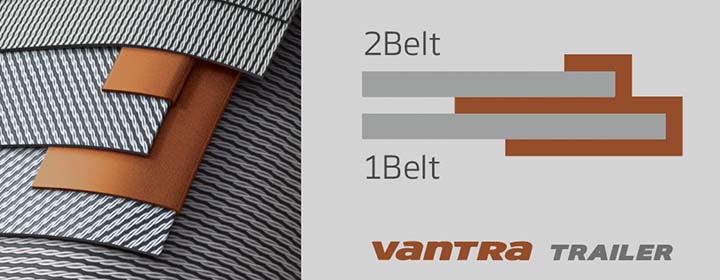

Belt edge tape

Stronger bonding between the belts ensures driving stability at high speeds, and the durable structure is designed to sustain vehicle loads.

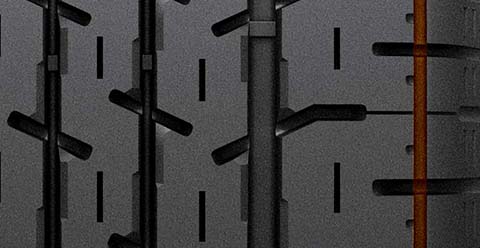

Decoupling groove

Optimized decoupling groove prevent heat generation in the shoulder part due to heavy loads.

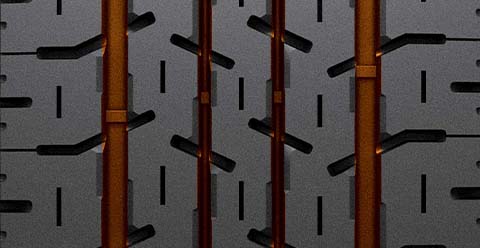

Groove stiffness

Each groove design with high stiffness for heavy loads.

Long Life

Superior carbon black compound and optimized footprint adapted for longer life.

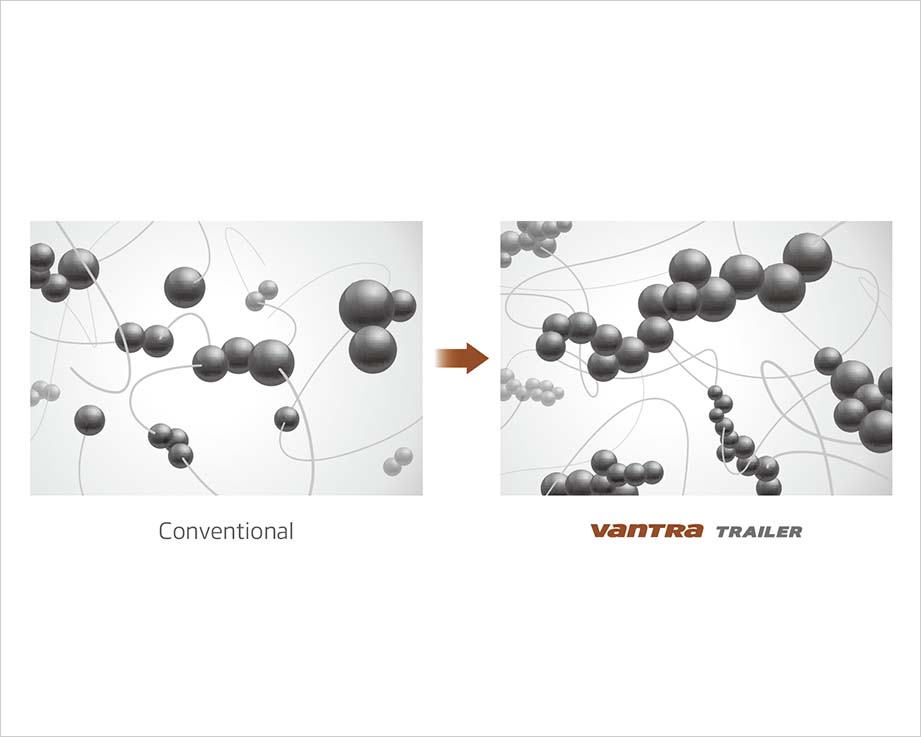

High structure and small particle size carbon

Super abrasion structure carbon black provides low rolling resistance, delivering high mileage to drivers.

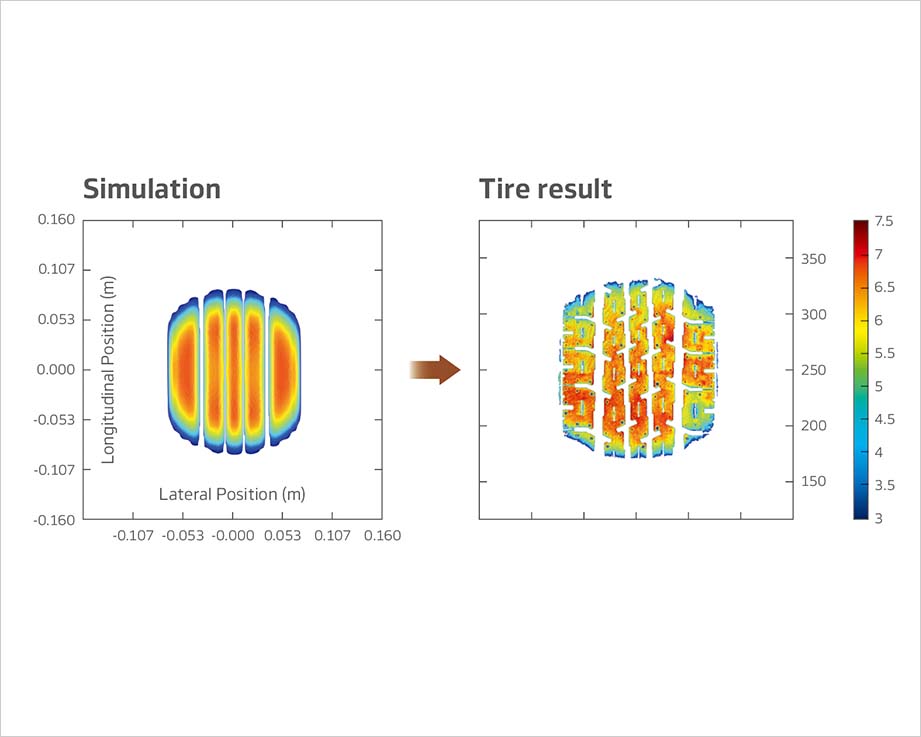

Optimized footprint by simulation

Results in more evenly distributed stress, leads to longer tread life and uniform wear under heavy loads.

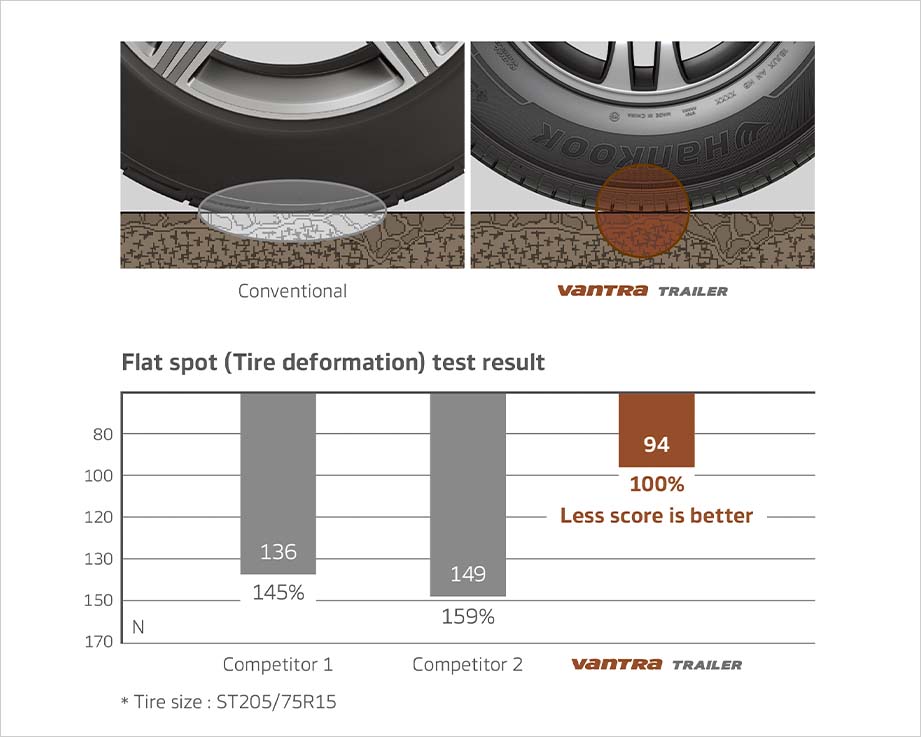

Performance Test Result

Optimized rubber matrix & tire structure help to maintain the stable shape of the tire for a long time.

  • Spec

    • 13”
    • 14”
    • 15”
    • 16”
    • ST175/80R13
      • Material Code 2021432
      • Overall Diameter(inch) 24.0
      • Ply Rating 6
      • Measuring Rim 5.0JX13
      • Rim Width Range 4.5-6.0
      • Section Width(inch) 7.0
      • 3PMSF N
      • Tread Depth(32nds) 8
      • Tread Width(inch) 5.5
      • TT/TL L
      • Tire Weight(lbs.) 21
      • M+S N
      • Origin China
    • ST185/80R13
      • Material Code 2021433
      • Overall Diameter(inch) 24.6
      • Ply Rating 6
      • Measuring Rim 5.0JX13
      • Rim Width Range 4.5-6.0
      • Section Width(inch) 7.2
      • 3PMSF N
      • Tread Depth(32nds) 8
      • Tread Width(inch) 5.8
      • TT/TL L
      • Tire Weight(lbs.) 22
      • M+S N
      • Origin China
    • ST205/75R14
      • Material Code 2021434
      • Overall Diameter(inch) 26.1
      • Ply Rating 8
      • Rim Width Range 5.0-7.0
      • Section Width(inch) 8.0
      • 3PMSF N
      • Static Loaded Radius(inch) 0.0
      • Tread Depth(32nds) 8
      • Tread Width(inch) 6.5
      • TT/TL L
      • Tire Weight(lbs.) 28
      • M+S N
      • Origin China
      • Recommended Rim Width 5.5
    • ST205/75R15
      • Material Code 2021436
      • Overall Diameter(inch) 27.1
      • Ply Rating 8
      • Measuring Rim 5.5JX15
      • Rim Width Range 5.0-7.0
      • Section Width(inch) 8.0
      • 3PMSF N
      • Static Loaded Radius(inch) 0.0
      • Tread Depth(32nds) 8
      • Tread Width(inch) 6.5
      • TT/TL L
      • Tire Weight(lbs.) 30
      • M+S N
      • Origin China
      • Recommended Rim Width 5.5
    • ST215/75R14
      • Material Code 2021435
      • Overall Diameter(inch) 26.7
      • Ply Rating 8
      • Measuring Rim 0
      • Rim Width Range 5.5-7.0
      • Section Width(inch) 8.5
      • 3PMSF N
      • Static Loaded Radius(inch) 0.0
      • Tread Depth(32nds) 8
      • Tread Width(inch) 6.8
      • TT/TL L
      • Tire Weight(lbs.) 30
      • M+S N
      • Origin China
      • Recommended Rim Width 6.0
    • ST225/75R15
      • Material Code 2021437
      • Overall Diameter(inch) 28.3
      • Ply Rating 10
      • Measuring Rim 6.0JX15
      • Rim Width Range 6.0-7.5
      • Section Width(inch) 8.9
      • 3PMSF N
      • Static Loaded Radius(inch) 0.0
      • Tread Depth(32nds) 8
      • Tread Width(inch) 7.1
      • TT/TL L
      • Tire Weight(lbs.) 34
      • M+S N
      • Origin China
      • Recommended Rim Width 6.0
    • ST235/80R16
      • Material Code 2021438
      • Overall Diameter(inch) 30.8
      • Ply Rating 10
      • Measuring Rim 6.5JX16
      • Rim Width Range 6.0-8.0
      • Section Width(inch) 9.4
      • 3PMSF N
      • Static Loaded Radius(inch) 0.0
      • Tread Depth(32nds) 8
      • Tread Width(inch) 7.4
      • TT/TL L
      • Tire Weight(lbs.) 44
      • M+S N
      • Origin China
      • Recommended Rim Width 6.5
    • ST235/85R16
      • Material Code 2021439
      • Overall Diameter(inch) 31.7
      • Ply Rating 10
      • Measuring Rim 6.5JX16
      • Rim Width Range 6.0-7.5
      • Section Width(inch) 9.4
      • 3PMSF N
      • Static Loaded Radius(inch) 0.0
      • Tread Depth(32nds) 8
      • Tread Width(inch) 7.4
      • TT/TL L
      • Tire Weight(lbs.) 46
      • M+S N
      • Origin China
      • Recommended Rim Width 6.5
    • ST255/85R16
      • Material Code 2021440
      • Overall Diameter(inch) 33.1
      • Ply Rating 10
      • Measuring Rim 7.0JX16
      • Rim Width Range 6.5-8.0
      • Section Width(inch) 10.2
      • 3PMSF N
      • Static Loaded Radius(inch) 0.0
      • Tread Depth(32nds) 8
      • Tread Width(inch) 8.0
      • TT/TL L
      • Tire Weight(lbs.) 51
      • M+S N
      • Origin China
      • Recommended Rim Width 7.0
